Aftermarket Tennant 9009486 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

Aftermarket Tennant 9009486 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

by Aftermarket
SKU SH-JAC2024HB
Aftermarket Tennant 9009486
Machine Fitment

Tennant R14, Nobles Strive Rider, Nobles Speed Scrub Rider (SSR), Tennant T7
Description

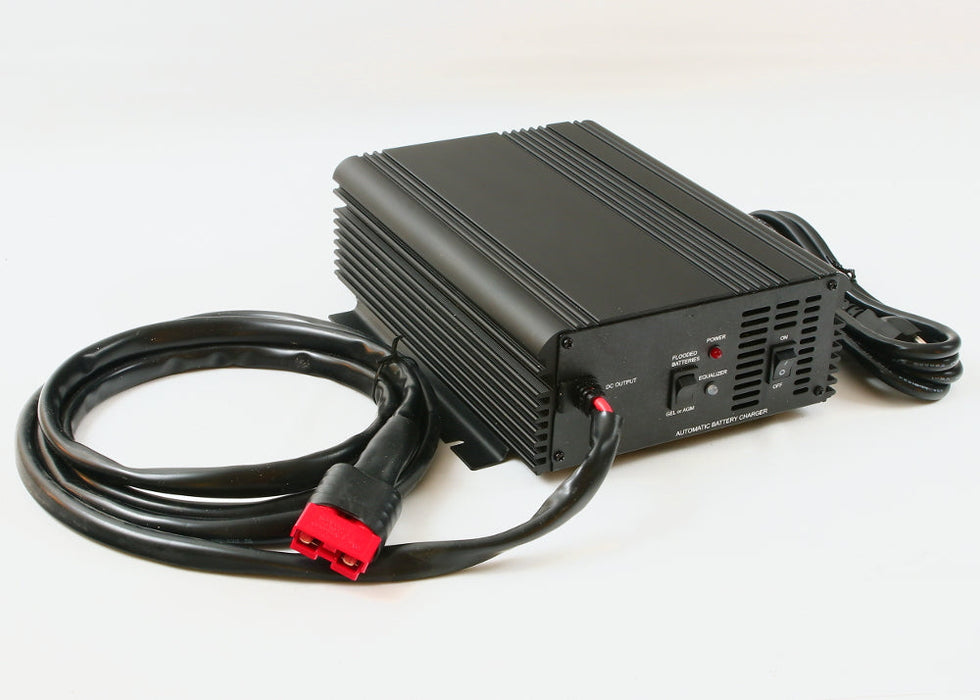

 Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input
  • Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz
  • Input Current Max: 11 Amps
  • Single Phase
  • Input Receptacle: IEC C14
DC Output
  • Output Voltage - Nominal: 24 VDC
  • Output Voltage - Flooded: 29.7 VDC
  • Output Voltage - AGM / Gel: 28.8 VDC
  • Float Voltage: 26.5 VDC
  • Max DC Current: 20 Amps
  • Battery Type: Lead Acid, AGM, Gel
  • 3 Stage Charging Profile: CC/CV/Float
  • Load Sensing, Minimum Voltage: 8 Volts
Features
  • Charger Ships with 6 foot lead with SB 50 Connector

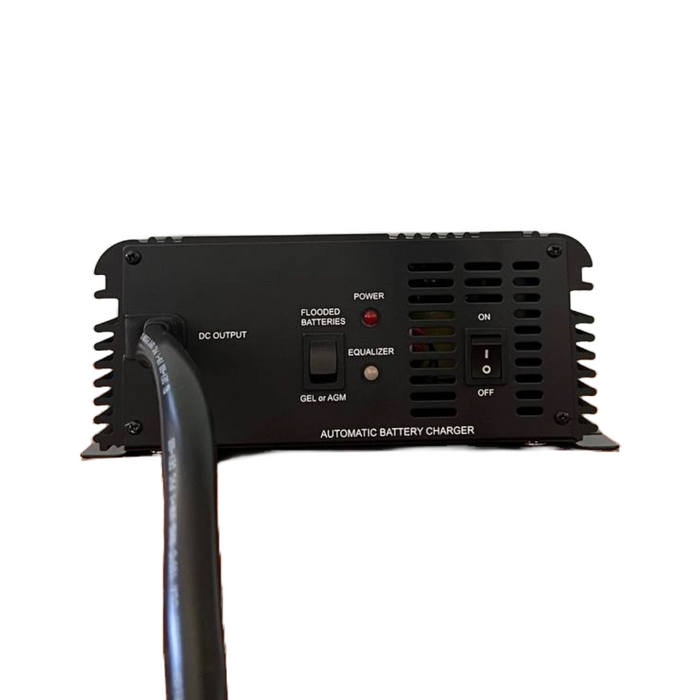

  • Selectable Charging Profile: Flooded, AGM or GEL
  • Low start voltage 4 volts
  • Continuous 100% duty cycle
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Thermal Protection
  • 2 Year Warranty

Fits:

Cross reference number:

$0
$479.00 - $479.00
$479.00
$479.00 - $479.00
$479.00
