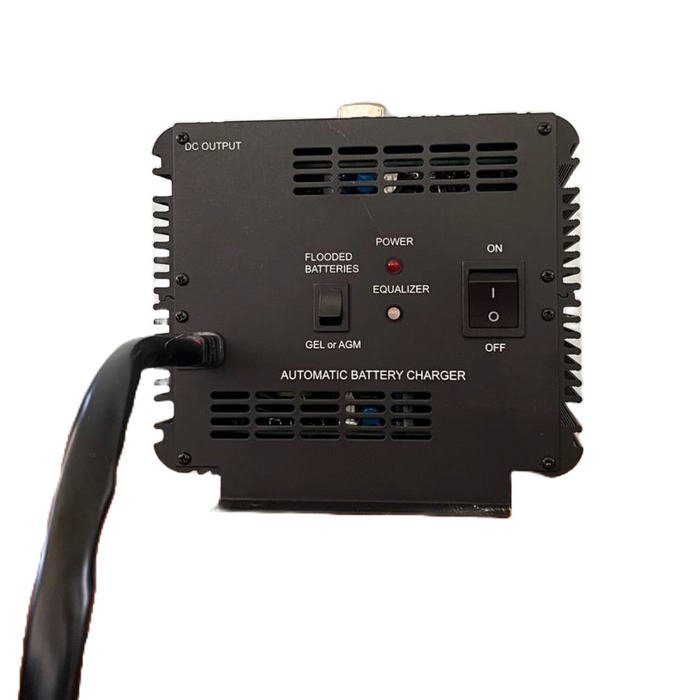

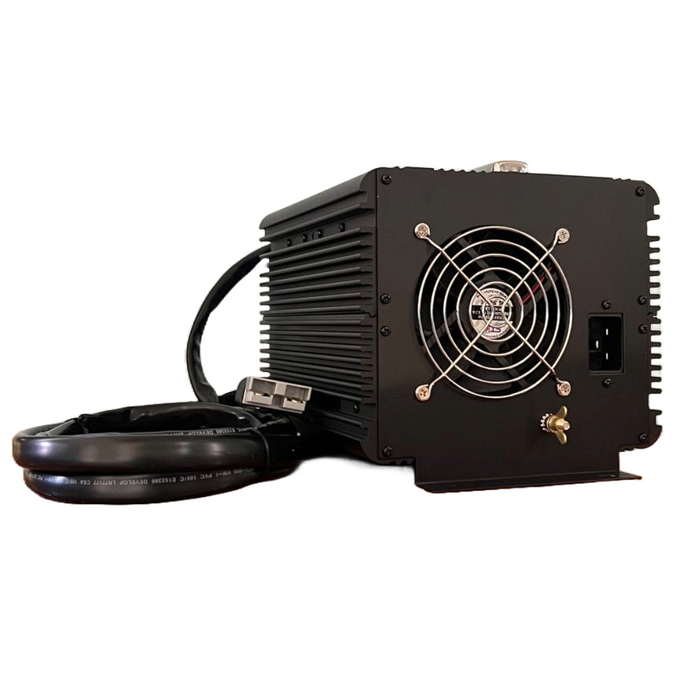

Aftermarket Karcher Windsor 9.110-197.0 | Offboard Charger | 36V | 20 AMPs | SB50 Connector Red and Grey

Aftermarket Karcher Windsor 9.110-197.0 | Offboard Charger | 36V | 20 AMPs | SB50 Connector Red and Grey

by Aftermarket
SKU SH-JAC2036HK
$519.00 - $519.00
$519.00
$519.00 - $519.00
$519.00
Aftermarket A Karcher Windsor 9.110-197.0
Machine Fitment

Chariot iScrub 20, Chariot iScrub 20 Deluxe, Chariot iScrub 22 SP, Chariot iVac 24, Commodore DUO
Description
 Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input
  • Input Voltage (auto-sensing): 115/230 VAC, 50/60 Hz
  • Input Current Max: 14 Amps
  • Single Phase
  • Input Receptacle: IEC C14
DC Output
  • Output Voltage - Nominal: 36 VDC
  • Output Voltage - Bulk / Cyclic: 44.6 VDC
  • Float Voltage: 43.2 VDC
  • Max DC Current: 20 Amps
  • Battery Type: Lead Acid: Standard, AGM, Gel
  • 3 Stage Charging Profile: CC/CV/Float
  • Load Sensing, Minimum Voltage: 12 Volts
Features
  • Cooling Fan
  • Reverse Polarity Protection
  • High Energy Efficiency (UEC, BC)
  • Voltage Limited
  • Current Limited
  • Over Voltage Protection
  • Over Temperature Protection
  • Short Circuit Protection
  • Final Float / Maintenance Mode
  • Aluminum Case
  • Mounting Flanges
  • On / Off Switch
  • DC Output Cord 8ft w/ Anderson SB50 Grey Connector
  • Two-year Limited Warranty

Fits:

Cross reference number:

2452
