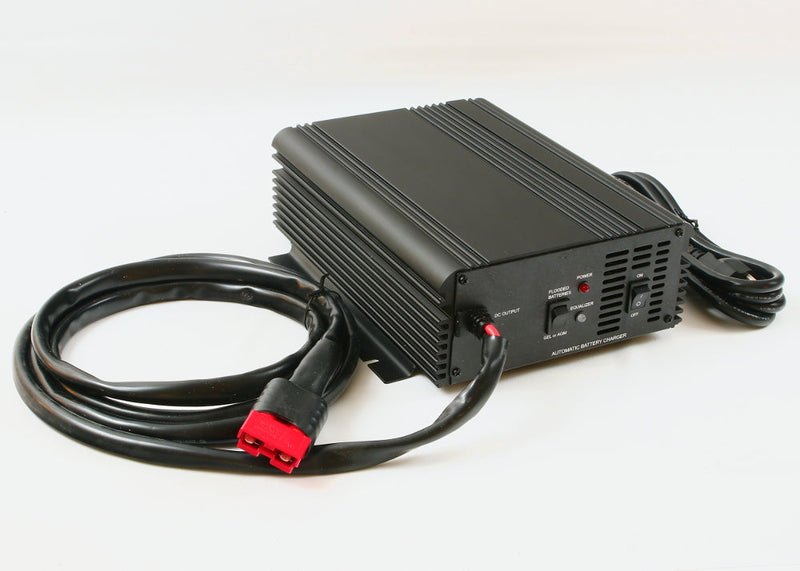

Aftermarket Advance 56383075 | Offboard Charger | 24V | 20 AMPs | SB50 Connector Red and Grey

SKU: SH-JAC2024HI
$479.00
🚚 Free Shipping $100+
📞 Expert Support
🔄 Easy Returns
🔒 Secure Checkout

About This Part

Aftermarket Advance 56383075
Machine Fitment

Clarke Boost 28/32, Encore L2426, Encore L30, S20, L20, S2426, S30, Vantage 17B, 20B

Description
Offboard charger comes out of the box with the SB50 grey Anderson Connector pre-assembled, there is also a SB50 red Anderson Connector included in the box as well. Charger comes pre-programmed at "wet" battery setting, but it is the customer's responsibility to verify their machine's battery type before setting the charger profile on the charger itself.
AC Input
  • Input Voltage (auto-sensing): 100-240 VAC, 50/60 Hz
  • Input Current Max: 11 Amps
  • Single Phase
  • Input Receptacle: IEC C14
DC Output
  • Output Voltage - Nominal: 24 VDC
  • Output Voltage - Flooded: 29.7 VDC
  • Output Voltage - AGM / Gel: 28.8 VDC
  • Float Voltage: 26.5 VDC
  • Max DC Current: 20 Amps
  • Battery Type: Lead Acid, AGM, Gel
  • 3 Stage Charging Profile: CC/CV/Float
  • Load Sensing, Minimum Voltage: 8 Volts
Features
  • Charger Ships with 6 foot lead with SB 50 Connector
  • Selectable Charging Profile: Flooded, AGM or GEL
  • Low start voltage 4 volts
  • Continuous 100% duty cycle
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Thermal Protection
  • 2 Year Warranty
